Resource Profile: Imaging Study

Official URL: https://fhir.nhs.uk/England/RAD/StructureDefinition/ImagingStudy Version: 0.0.1-current
Draft as of 2024-10-24 Computable Name: ImagingStudy

Ignore, just a collection of notes.

The NIR Alpha Technical Specification recommends using DICOM Retrieve (WADO-RS).

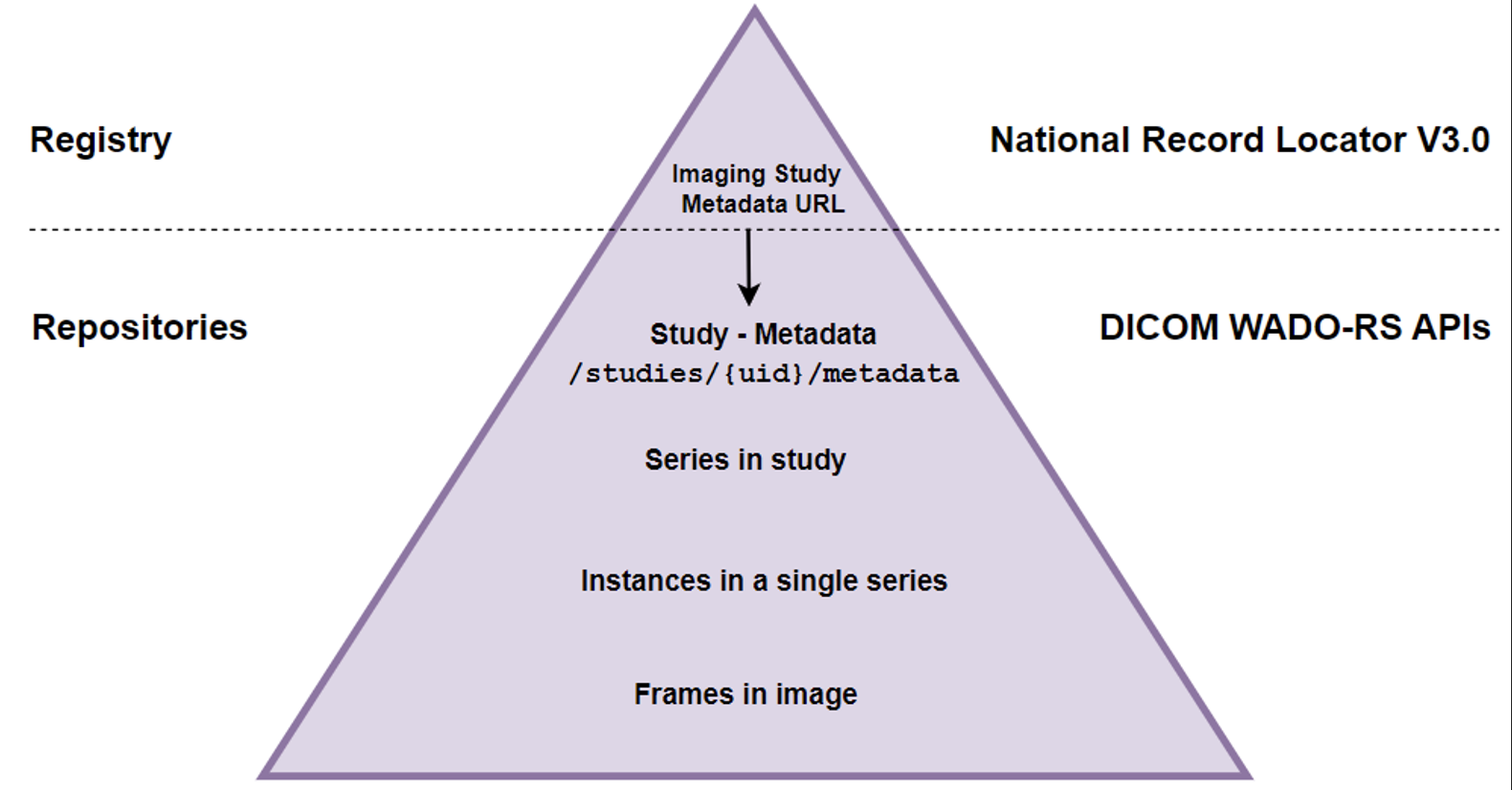

Linking NRL pointers to WADO-RS APIs

Linking NRL pointers to WADO-RS APIs


In IHE Radiology (RAD) Domain this is:

IHE UK are also suggesting the using of DICOM Key Object Selection (KOS) as an alternative, which in IHE Radiology (RAD) is:

This document is concerned only the entity model for Imaging Study (from EU eHealth Network - Medical imaging studies and reports) as

An imaging study comprises a set of objects, including images and other objects, that were made for a specific purpose and usually in response to a request from a healthcare provider. The Imaging Study does not include the Imaging Report as defined in this guideline.

Note: Developer Tip. Most of the interactions and payloads can be viewed/inspected by going to Medical Connections - DICOM WebViewer using a browsers development tools.

Imaging Study Domain Model

For modelling purposes FHIR ImagingStudy is being used, this does not mean FHIR should be used for the implementation. It is being used as a modellng tool, this also enables cross-referencing with other models which again can be implemented in a variety of standards but here are modelled using HL7 FHIR.

«aggregate root»ImagingStudyseries 0..*DICOMStudy MetadataGET /studies/{study}/metadata«entity»Seriesinstance 0..*DICOMSeries MetadataGET /studies/{study}/series/{series}/metadata«entity»InstanceDICOMInstance MetadataGET /studies/{study}/series/{series}/instances/{instance}/metadataseriesinstance

Entity Diagnostic Report


List of DICOM IOD Modules (this appears to be used also in DICOM KOS) Composite Information Object Definitions (Normative)

DICOM Key Object Selection (KOS) Domain Model

Should this be this Key Object Selection Document IOD Module Table

DICOM IOD Module Usage DICOM Reference and Link
Patient M C.7.1.1 Common Composite IOD Modules
Specimen Identification C C.7.1.2 Common Composite IOD Modules retired?. See also Specimen Module
General Study M C.7.2.1 Common Study IE Modules
Patient Study U C.7.2.2 Common Study IE Modules
Key Object Document Series M C.17.6.1 Key Object Document Series
General Equipment M C.7.5.1 Common Equipment IE Modules
Key Object Document Module M C.17.6.2 Key Object Document Module
SR Document Content M C.17.3 SR Document Content Module
SOP Common M C.12.1 General Modules

Entity Mapping

Based on DICOM Key Object Selection (KOS)

Common Composite IOD Modules

Common Composite IOD Modules

(Extract)

Attribute Name Tag Type Attribute Description FHIR ImagingStudy NHS Data Dictionary
Patient’s Name (0010,0010) 2 Patient’s full name. subject.display
Patient ID (0010,0020) 2 Primary identifier for the Patient. suject.identifier.value NHS NUMBER

Note In the case of imaging a group of small animals simultaneously, the single value of this identifier corresponds to the identification of the entire group. See also Section C.7.1.4.1.1.

Common Study IE Modules

C.7.2.1 Common Study IE Modules

Attribute Name Tag Type Attribute Description FHIR ImagingStudy NHS Data Dictionary
Study Instance UID (0020,000D) 1 Unique identifier for the Study. identifier
Study Date (0008,0020) 2 Date the Study started. started
Study Time (0008,0030) 2 Time the Study started. started
Referring Physician’s Name (0008,0090) 2 Name of the Patient’s referring physician. referrer.display
Referring Physician Identification Sequence (0008,0096) 3 Identification of the Patient’s referring physician.
Only a single Item is permitted in this Sequence.		 referrer.identifier?
>Include Table 10-1 “Person Identification Macro Attributes”
Consulting Physician’s Name (0008,009C) 3 Consulting physician(s) for this Patient Visit.
Consulting Physician Identification Sequence (0008,009D) 3 Identification of the consulting physician(s).
One or more Items are permitted in this Sequence. If more than one Item, the number and order shall correspond to the value of Consulting Physician’s Name (0008,009C), if present.
>Include Table 10-1 “Person Identification Macro Attributes”
Study ID (0020,0010) 2 User or equipment generated Study identifier. identifier
Accession Number (0008,0050) 2 A departmental Information System generated number that identifies the Imaging Service Request.
Issuer of Accession Number Sequence (0008,0051) 3 Identifier of the Assigning Authority that issued the Accession Number.
Only a single Item is permitted in this Sequence.
>Include Table 10-17 “HL7v2 Hierarchic Designator Macro Attributes”
Study Description (0008,1030) 3 Institution-generated description or classification of the Study performed. description
Physician(s) of Record (0008,1048) 3 Names of the physician(s) who are responsible for overall Patient care at time of Study (see Section C.7.3.1 for Performing Physician).
Physician(s) of Record Identification Sequence (0008,1049) 3 Identification of the physician(s) who are responsible for overall Patient care at time of Study.
One or more Items are permitted in this Sequence. If more than one Item, the number and order shall correspond to the value of Physician(s) of Record (0008,1048), if present.
>Include Table 10-1 “Person Identification Macro Attributes”
Name of Physician(s) Reading Study (0008,1060) 3 Names of the physician(s) reading the Study. interpreter.display
Physician(s) Reading Study Identification Sequence (0008,1062) 3 Identification of the physician(s) reading the Study. One or more Items are permitted in this Sequence. If more than one Item, the number and order shall correspond to the value of Name of Physician(s) Reading Study (0008,1060), if present. interpreter.identifier?
>Include Table 10-1 “Person Identification Macro Attributes”
Requesting Service (0032,1033) 3 Institutional department, unit or service where the request initiated.
See Note 1 and Note 2.
Requesting Service Code Sequence (0032,1034) 3 Institutional department, unit or service where the request initiated.
Only a single Item is permitted in this Sequence.
>Include Table 8.8-1 “Code Sequence Macro Attributes”     DCID 7030 “Institutional Department/Unit/Service”.
Referenced Study Sequence (0008,1110) 3 A Sequence that provides reference to a Study.
One or more Items are permitted in this Sequence.
>Include Table 10-11 “SOP Instance Reference Macro Attributes”
Procedure Code Sequence (0008,1032) 3 A Sequence that conveys the type of procedure performed.
One or more Items are permitted in this Sequence.		 procedureCode ImagingCodeNICIP confirm
>Include Table 8.8-1 “Code Sequence Macro Attributes”     BCID 101 “Imaging Procedure”.
Reason For Performed Procedure Code Sequence (0040,1012) 3 Coded reason(s) for performing this procedure.
Note May differ from the values in Reason for the Requested Procedure (0040,100A) in Request Attribute Sequence (0040,0275), for example if what was performed differs from what was requested.
One or more Items are permitted in this Sequence.		 reasonCode?
>Include Table 8.8-1 “Code Sequence Macro Attributes”     No Baseline CID is defined.

Note

  1. Both Requesting Service (0032,1033) and Requesting Service Code Sequence (0032,1034) are defined in this table; the latter is preferred, but the former may be copied from an HL7 message whether or not there is also the ability to map it to a coded form (e.g., with only ORC-17 component 1 valued).
  2. Requesting Service (0032,1033) and/or Requesting Service Code Sequence (0032,1034) may be used in the absence of a specific request or order, to describe the service involved or associated with acquiring the Study.

Key Object Document Series

C.17.6.1 Key Object Document Series

Attribute Type Tag Type Description FHIR ImagingStudy
Modality (0008,0060) 1 Modality type.
Enumerated Value:
KO = Key Object Selection		 series.modality
Series Instance UID (0020,000E) 1 Unique identifier of the Series.
Note: No specific semantics are specified.		 series.uid
Series Number (0020,0011) 1 A number that identifies the Series.
Note: No specific semantics are specified.		 series.number
Referenced Study Component Sequence (0008,1111) 2 Uniquely identifies the Performed Procedure Step SOP Instance for which the Series is created. Only a single Item shall be permitted in this sequence.
Notes: See notes on this attribute in Section C.17.1 SR Document Series Module
> Referenced SOP Class UID (0008,1150) 1C Uniquely identifies the referenced SOP Class.
Required if Referenced Study Component Sequence (0008,1111) is sent.
> Referenced SOP Instance UID (0008,1155) 1C Uniquely identifies the referenced SOP Instance.
Required if Referenced Study Component Sequence (0008,1111) is sent.

Key Object Document Module

C.17.6.2 Key Object Document Module

Attribute Name Tag Type Description FHIR ImagingStudy NHS Data Dictionary
Instance Number (0020,0013) 1 A number that identifies the Document. series.instance.number
Content Date (0008,0023) 1 The date the document content creation started.
Content Time (0008,0033) 1 The time the document content creation started.
Referenced Request Sequence (0040,A370) 1C Identifies Requested Procedures to which this Document pertains. One or more Items may be included in this sequence.
Required if this Document pertains to at least one Requested Procedure.
>Study Instance UID (0020,000D) 1 Unique identifier for the Study. identifier
>Referenced Study Sequence (0008,1110) 2 Uniquely identifies the Study SOP Instance.
Only a single Item shall be permitted in this sequence.
»Referenced SOP Class UID (0008,1150) 1 Uniquely identifies the SOP Class
»Referenced SOP Instance UID (0008,1155) 1 Uniquely identifies the SOP Instance.
>Accession Number (0008,0050) 2 A departmental IS generated number which identifies the order for the Study. identifier RADIOLOGICAL ACCESSION NUMBER
>Placer Order Number/Imaging Service Request (0040,2016) 2 The order number assigned to the Imaging Service Request by the party placing the order.
>Filler Order Number/Imaging Service Request (0040,2017) 2 The order number assigned to the Imaging Service Request by the party filling the order.
>Requested Procedure ID (0040,1001) 2 Identifier of the related Requested Procedure basedOn.identifier?
>Requested Procedure Description (0032,1060) 2 Institution-generated administrative description or classification of Requested Procedure.
>Requested Procedure Code Sequence (0032,1064) 2 A sequence that conveys the requested procedure. Zero or one Item may be included in this sequence. basedOn.identifier
»Include ‘Code Sequence Macro’ Table 8.8-1     No Baseline Context ID Number is specified.
Current Requested Procedure Evidence Sequence (0040,A375) 1 List of all Composite SOP Instances referenced in the Content Sequence (0040,A730). One or more Items shall be included in this sequence.
>Include ‘SOP Instance Reference Macro’ Table C.17-3

Key Object Document Directory Record Definition

C.17.3 SR Document Content Module

Key Tag Type Type
Specific Character Set (0008,0005) 1C Required if an extended or replacement character set is used in one of the keys.
Instance Number (0020,0013) 1
Content Date (0008,0023) 1
Content Time (0008,0033) 1
Concept Name Code Sequence (0040,A043) 1 Code describing the concept represented by the root Content Item (Document Title). This sequence shall contain exactly one Item.
Content Sequence (0040,A730) 1C Contains the Target Content Items that modify the Concept Name Code Sequence of the root Content Item (Document Title).
Required if the root Content Item is the Source Content Item of HAS CONCEPT MOD relationships.
Any Attribute of the Document IE Modules   3

Usage:

  • This Resource Profile is not used by any profiles in this Implementation Guide

Formal Views of Profile Content

Description of Profiles, Differentials, Snapshots and how the different presentations work.

This structure is derived from ImagingStudy

NameFlagsCard.TypeDescription & Constraintsdoco
.. ImagingStudy 0..* ImagingStudy A set of images produced in single study (one or more series of references images)
... Slices for identifier S 1..* Identifier Identifiers for the whole study
Slice: Unordered, Open by pattern:type
.... identifier:accessionNumber S 1..1 AccessionNumber An identifier intended for computation
... subject 1..1 Reference(Patient) Who or what is the subject of the study
.... identifier 1..1 NHSNumber An identifier intended for computation
... procedureCode 0..* CodeableConcept The performed procedure code
Binding: ImagingCodeNICIP (required)

doco Documentation for this format

Terminology Bindings (Differential)

PathConformanceValueSetURI
ImagingStudy.procedureCoderequiredImagingCodeNICIP
https://fhir.nhs.uk/England/RAD/ValueSet/imaging-code-nicip
from this IG
NameFlagsCard.TypeDescription & Constraintsdoco
.. ImagingStudy 0..* ImagingStudy A set of images produced in single study (one or more series of references images)
... implicitRules ?!Σ 0..1 uri A set of rules under which this content was created
... modifierExtension ?! 0..* Extension Extensions that cannot be ignored
... Slices for identifier SΣ 1..* Identifier Identifiers for the whole study
Slice: Unordered, Open by pattern:type
.... identifier:accessionNumber S 1..1 AccessionNumber An identifier intended for computation
... status ?!Σ 1..1 code registered | available | cancelled | entered-in-error | unknown
Binding: ImagingStudyStatus (required): The status of the ImagingStudy.

... subject Σ 1..1 Reference(Patient) Who or what is the subject of the study
.... identifier 1..1 NHSNumber An identifier intended for computation
... procedureCode Σ 0..* CodeableConcept The performed procedure code
Binding: ImagingCodeNICIP (required)

doco Documentation for this format

Terminology Bindings

PathConformanceValueSetURI
ImagingStudy.statusrequiredImagingStudyStatus
http://hl7.org/fhir/ValueSet/imagingstudy-status|4.0.1
from the FHIR Standard
ImagingStudy.procedureCoderequiredImagingCodeNICIP
https://fhir.nhs.uk/England/RAD/ValueSet/imaging-code-nicip
from this IG
NameFlagsCard.TypeDescription & Constraintsdoco
.. ImagingStudy 0..* ImagingStudy A set of images produced in single study (one or more series of references images)
... id Σ 0..1 id Logical id of this artifact
... meta Σ 0..1 Meta Metadata about the resource
... implicitRules ?!Σ 0..1 uri A set of rules under which this content was created
... language 0..1 code Language of the resource content
Binding: CommonLanguages (preferred): A human language.

Additional BindingsPurpose
AllLanguages Max Binding
... text 0..1 Narrative Text summary of the resource, for human interpretation
... contained 0..* Resource Contained, inline Resources
... extension 0..* Extension Additional content defined by implementations
... modifierExtension ?! 0..* Extension Extensions that cannot be ignored
... Slices for identifier SΣ 1..* Identifier Identifiers for the whole study
Slice: Unordered, Open by pattern:type
.... identifier:accessionNumber S 1..1 AccessionNumber An identifier intended for computation
... status ?!Σ 1..1 code registered | available | cancelled | entered-in-error | unknown
Binding: ImagingStudyStatus (required): The status of the ImagingStudy.

... modality Σ 0..* Coding All series modality if actual acquisition modalities
Binding: AcquisitionModality . (extensible): Type of acquired data in the instance.


... subject Σ 1..1 Reference(Patient) Who or what is the subject of the study
.... id 0..1 string Unique id for inter-element referencing
.... extension 0..* Extension Additional content defined by implementations
Slice: Unordered, Open by value:url
.... reference ΣC 0..1 string Literal reference, Relative, internal or absolute URL
.... type Σ 0..1 uri Type the reference refers to (e.g. "Patient")
Binding: ResourceType (extensible): Aa resource (or, for logical models, the URI of the logical model).

.... identifier 1..1 NHSNumber An identifier intended for computation
.... display Σ 0..1 string Text alternative for the resource
... encounter Σ 0..1 Reference(Encounter) Encounter with which this imaging study is associated
... started Σ 0..1 dateTime When the study was started
Example General: 2011-01-01T11:01:20+03:00
... basedOn Σ 0..* Reference(CarePlan | ServiceRequest | Appointment | AppointmentResponse | Task) Request fulfilled
... referrer Σ 0..1 Reference(Practitioner | PractitionerRole) Referring physician
... interpreter Σ 0..* Reference(Practitioner | PractitionerRole) Who interpreted images
... endpoint Σ 0..* Reference(Endpoint) Study access endpoint
... numberOfSeries Σ 0..1 unsignedInt Number of Study Related Series
... numberOfInstances Σ 0..1 unsignedInt Number of Study Related Instances
... procedureReference Σ 0..1 Reference(Procedure) The performed Procedure reference
... procedureCode Σ 0..* CodeableConcept The performed procedure code
Binding: ImagingCodeNICIP (required)
... location Σ 0..1 Reference(Location) Where ImagingStudy occurred
... reasonCode Σ 0..* CodeableConcept Why the study was requested
Binding: ProcedureReasonCodes (example): The reason for the study.


... reasonReference Σ 0..* Reference(Condition | Observation | Media | DiagnosticReport | DocumentReference) Why was study performed
... note Σ 0..* Annotation User-defined comments
... description Σ 0..1 string Institution-generated description
... series Σ 0..* BackboneElement Each study has one or more series of instances
.... id 0..1 string Unique id for inter-element referencing
.... extension 0..* Extension Additional content defined by implementations
.... modifierExtension ?!Σ 0..* Extension Extensions that cannot be ignored even if unrecognized
.... uid Σ 1..1 id DICOM Series Instance UID for the series
Example General: 2.16.124.113543.6003.2588828330.45298.17418.2723805630
.... number Σ 0..1 unsignedInt Numeric identifier of this series
Example General: 3
.... modality Σ 1..1 Coding The modality of the instances in the series
Binding: AcquisitionModality . (extensible): Type of acquired data in the instance.

.... description Σ 0..1 string A short human readable summary of the series
Example General: CT Surview 180
.... numberOfInstances Σ 0..1 unsignedInt Number of Series Related Instances
.... endpoint Σ 0..* Reference(Endpoint) Series access endpoint
.... bodySite Σ 0..1 Coding Body part examined
Binding: SNOMEDCTBodyStructures (example): Codes describing anatomical locations. May include laterality.

.... laterality Σ 0..1 Coding Body part laterality
Binding: Laterality (example): Codes describing body site laterality (left, right, etc.).

.... specimen Σ 0..* Reference(Specimen) Specimen imaged
.... started Σ 0..1 dateTime When the series started
.... performer Σ 0..* BackboneElement Who performed the series
..... id 0..1 string Unique id for inter-element referencing
..... extension 0..* Extension Additional content defined by implementations
..... modifierExtension ?!Σ 0..* Extension Extensions that cannot be ignored even if unrecognized
..... function Σ 0..1 CodeableConcept Type of performance
Binding: ImagingStudySeriesPerformerFunction (extensible): The type of involvement of the performer.

..... actor Σ 1..1 Reference(Practitioner | PractitionerRole | Organization | CareTeam | Patient | Device | RelatedPerson) Who performed the series
.... instance 0..* BackboneElement A single SOP instance from the series
..... id 0..1 string Unique id for inter-element referencing
..... extension 0..* Extension Additional content defined by implementations
..... modifierExtension ?!Σ 0..* Extension Extensions that cannot be ignored even if unrecognized
..... uid 1..1 id DICOM SOP Instance UID
Example General: 2.16.124.113543.6003.189642796.63084.16748.2599092903
..... sopClass 1..1 Coding DICOM class type
Binding: http://dicom.nema.org/medical/dicom/current/output/chtml/part04/sect_B.5.html#table_B.5-1 (extensible): The sopClass for the instance.

..... number 0..1 unsignedInt The number of this instance in the series
Example General: 1
..... title 0..1 string Description of instance

doco Documentation for this format

Terminology Bindings

PathConformanceValueSetURI
ImagingStudy.languagepreferredCommonLanguages
Additional Bindings Purpose
AllLanguages Max Binding
http://hl7.org/fhir/ValueSet/languages
from the FHIR Standard
ImagingStudy.statusrequiredImagingStudyStatus
http://hl7.org/fhir/ValueSet/imagingstudy-status|4.0.1
from the FHIR Standard
ImagingStudy.modalityextensibleAcquisitionModality .
http://dicom.nema.org/medical/dicom/current/output/chtml/part16/sect_CID_29.html
ImagingStudy.subject.typeextensibleResourceType
http://hl7.org/fhir/ValueSet/resource-types
from the FHIR Standard
ImagingStudy.procedureCoderequiredImagingCodeNICIP
https://fhir.nhs.uk/England/RAD/ValueSet/imaging-code-nicip
from this IG
ImagingStudy.reasonCodeexampleProcedureReasonCodes
http://hl7.org/fhir/ValueSet/procedure-reason
from the FHIR Standard
ImagingStudy.series.modalityextensibleAcquisitionModality .
http://dicom.nema.org/medical/dicom/current/output/chtml/part16/sect_CID_29.html
ImagingStudy.series.bodySiteexampleSNOMEDCTBodyStructures
http://hl7.org/fhir/ValueSet/body-site
from the FHIR Standard
ImagingStudy.series.lateralityexampleLaterality
http://hl7.org/fhir/ValueSet/bodysite-laterality
from the FHIR Standard
ImagingStudy.series.performer.functionextensibleImagingStudySeriesPerformerFunction
http://hl7.org/fhir/ValueSet/series-performer-function
from the FHIR Standard
ImagingStudy.series.instance.sopClassextensiblehttp://dicom.nema.org/medical/dicom/current/output/chtml/part04/sect_B.5.html#table_B.5-1
http://dicom.nema.org/medical/dicom/current/output/chtml/part04/sect_B.5.html#table_B.5-1

This structure is derived from ImagingStudy

Summary

Mandatory: 3 elements
Must-Support: 2 elements

Structures

This structure refers to these other structures:

Slices

This structure defines the following Slices:

  • The element 1 is sliced based on the value of ImagingStudy.identifier

Differential View

This structure is derived from ImagingStudy

NameFlagsCard.TypeDescription & Constraintsdoco
.. ImagingStudy 0..* ImagingStudy A set of images produced in single study (one or more series of references images)
... Slices for identifier S 1..* Identifier Identifiers for the whole study
Slice: Unordered, Open by pattern:type
.... identifier:accessionNumber S 1..1 AccessionNumber An identifier intended for computation
... subject 1..1 Reference(Patient) Who or what is the subject of the study
.... identifier 1..1 NHSNumber An identifier intended for computation
... procedureCode 0..* CodeableConcept The performed procedure code
Binding: ImagingCodeNICIP (required)

doco Documentation for this format

Terminology Bindings (Differential)

PathConformanceValueSetURI
ImagingStudy.procedureCoderequiredImagingCodeNICIP
https://fhir.nhs.uk/England/RAD/ValueSet/imaging-code-nicip
from this IG

Key Elements View

NameFlagsCard.TypeDescription & Constraintsdoco
.. ImagingStudy 0..* ImagingStudy A set of images produced in single study (one or more series of references images)
... implicitRules ?!Σ 0..1 uri A set of rules under which this content was created
... modifierExtension ?! 0..* Extension Extensions that cannot be ignored
... Slices for identifier SΣ 1..* Identifier Identifiers for the whole study
Slice: Unordered, Open by pattern:type
.... identifier:accessionNumber S 1..1 AccessionNumber An identifier intended for computation
... status ?!Σ 1..1 code registered | available | cancelled | entered-in-error | unknown
Binding: ImagingStudyStatus (required): The status of the ImagingStudy.

... subject Σ 1..1 Reference(Patient) Who or what is the subject of the study
.... identifier 1..1 NHSNumber An identifier intended for computation
... procedureCode Σ 0..* CodeableConcept The performed procedure code
Binding: ImagingCodeNICIP (required)

doco Documentation for this format

Terminology Bindings

PathConformanceValueSetURI
ImagingStudy.statusrequiredImagingStudyStatus
http://hl7.org/fhir/ValueSet/imagingstudy-status|4.0.1
from the FHIR Standard
ImagingStudy.procedureCoderequiredImagingCodeNICIP
https://fhir.nhs.uk/England/RAD/ValueSet/imaging-code-nicip
from this IG

Snapshot View

NameFlagsCard.TypeDescription & Constraintsdoco
.. ImagingStudy 0..* ImagingStudy A set of images produced in single study (one or more series of references images)
... id Σ 0..1 id Logical id of this artifact
... meta Σ 0..1 Meta Metadata about the resource
... implicitRules ?!Σ 0..1 uri A set of rules under which this content was created
... language 0..1 code Language of the resource content
Binding: CommonLanguages (preferred): A human language.

Additional BindingsPurpose
AllLanguages Max Binding
... text 0..1 Narrative Text summary of the resource, for human interpretation
... contained 0..* Resource Contained, inline Resources
... extension 0..* Extension Additional content defined by implementations
... modifierExtension ?! 0..* Extension Extensions that cannot be ignored
... Slices for identifier SΣ 1..* Identifier Identifiers for the whole study
Slice: Unordered, Open by pattern:type
.... identifier:accessionNumber S 1..1 AccessionNumber An identifier intended for computation
... status ?!Σ 1..1 code registered | available | cancelled | entered-in-error | unknown
Binding: ImagingStudyStatus (required): The status of the ImagingStudy.

... modality Σ 0..* Coding All series modality if actual acquisition modalities
Binding: AcquisitionModality . (extensible): Type of acquired data in the instance.


... subject Σ 1..1 Reference(Patient) Who or what is the subject of the study
.... id 0..1 string Unique id for inter-element referencing
.... extension 0..* Extension Additional content defined by implementations
Slice: Unordered, Open by value:url
.... reference ΣC 0..1 string Literal reference, Relative, internal or absolute URL
.... type Σ 0..1 uri Type the reference refers to (e.g. "Patient")
Binding: ResourceType (extensible): Aa resource (or, for logical models, the URI of the logical model).

.... identifier 1..1 NHSNumber An identifier intended for computation
.... display Σ 0..1 string Text alternative for the resource
... encounter Σ 0..1 Reference(Encounter) Encounter with which this imaging study is associated
... started Σ 0..1 dateTime When the study was started
Example General: 2011-01-01T11:01:20+03:00
... basedOn Σ 0..* Reference(CarePlan | ServiceRequest | Appointment | AppointmentResponse | Task) Request fulfilled
... referrer Σ 0..1 Reference(Practitioner | PractitionerRole) Referring physician
... interpreter Σ 0..* Reference(Practitioner | PractitionerRole) Who interpreted images
... endpoint Σ 0..* Reference(Endpoint) Study access endpoint
... numberOfSeries Σ 0..1 unsignedInt Number of Study Related Series
... numberOfInstances Σ 0..1 unsignedInt Number of Study Related Instances
... procedureReference Σ 0..1 Reference(Procedure) The performed Procedure reference
... procedureCode Σ 0..* CodeableConcept The performed procedure code
Binding: ImagingCodeNICIP (required)
... location Σ 0..1 Reference(Location) Where ImagingStudy occurred
... reasonCode Σ 0..* CodeableConcept Why the study was requested
Binding: ProcedureReasonCodes (example): The reason for the study.


... reasonReference Σ 0..* Reference(Condition | Observation | Media | DiagnosticReport | DocumentReference) Why was study performed
... note Σ 0..* Annotation User-defined comments
... description Σ 0..1 string Institution-generated description
... series Σ 0..* BackboneElement Each study has one or more series of instances
.... id 0..1 string Unique id for inter-element referencing
.... extension 0..* Extension Additional content defined by implementations
.... modifierExtension ?!Σ 0..* Extension Extensions that cannot be ignored even if unrecognized
.... uid Σ 1..1 id DICOM Series Instance UID for the series
Example General: 2.16.124.113543.6003.2588828330.45298.17418.2723805630
.... number Σ 0..1 unsignedInt Numeric identifier of this series
Example General: 3
.... modality Σ 1..1 Coding The modality of the instances in the series
Binding: AcquisitionModality . (extensible): Type of acquired data in the instance.

.... description Σ 0..1 string A short human readable summary of the series
Example General: CT Surview 180
.... numberOfInstances Σ 0..1 unsignedInt Number of Series Related Instances
.... endpoint Σ 0..* Reference(Endpoint) Series access endpoint
.... bodySite Σ 0..1 Coding Body part examined
Binding: SNOMEDCTBodyStructures (example): Codes describing anatomical locations. May include laterality.

.... laterality Σ 0..1 Coding Body part laterality
Binding: Laterality (example): Codes describing body site laterality (left, right, etc.).

.... specimen Σ 0..* Reference(Specimen) Specimen imaged
.... started Σ 0..1 dateTime When the series started
.... performer Σ 0..* BackboneElement Who performed the series
..... id 0..1 string Unique id for inter-element referencing
..... extension 0..* Extension Additional content defined by implementations
..... modifierExtension ?!Σ 0..* Extension Extensions that cannot be ignored even if unrecognized
..... function Σ 0..1 CodeableConcept Type of performance
Binding: ImagingStudySeriesPerformerFunction (extensible): The type of involvement of the performer.

..... actor Σ 1..1 Reference(Practitioner | PractitionerRole | Organization | CareTeam | Patient | Device | RelatedPerson) Who performed the series
.... instance 0..* BackboneElement A single SOP instance from the series
..... id 0..1 string Unique id for inter-element referencing
..... extension 0..* Extension Additional content defined by implementations
..... modifierExtension ?!Σ 0..* Extension Extensions that cannot be ignored even if unrecognized
..... uid 1..1 id DICOM SOP Instance UID
Example General: 2.16.124.113543.6003.189642796.63084.16748.2599092903
..... sopClass 1..1 Coding DICOM class type
Binding: http://dicom.nema.org/medical/dicom/current/output/chtml/part04/sect_B.5.html#table_B.5-1 (extensible): The sopClass for the instance.

..... number 0..1 unsignedInt The number of this instance in the series
Example General: 1
..... title 0..1 string Description of instance

doco Documentation for this format

Terminology Bindings

PathConformanceValueSetURI
ImagingStudy.languagepreferredCommonLanguages
Additional Bindings Purpose
AllLanguages Max Binding
http://hl7.org/fhir/ValueSet/languages
from the FHIR Standard
ImagingStudy.statusrequiredImagingStudyStatus
http://hl7.org/fhir/ValueSet/imagingstudy-status|4.0.1
from the FHIR Standard
ImagingStudy.modalityextensibleAcquisitionModality .
http://dicom.nema.org/medical/dicom/current/output/chtml/part16/sect_CID_29.html
ImagingStudy.subject.typeextensibleResourceType
http://hl7.org/fhir/ValueSet/resource-types
from the FHIR Standard
ImagingStudy.procedureCoderequiredImagingCodeNICIP
https://fhir.nhs.uk/England/RAD/ValueSet/imaging-code-nicip
from this IG
ImagingStudy.reasonCodeexampleProcedureReasonCodes
http://hl7.org/fhir/ValueSet/procedure-reason
from the FHIR Standard
ImagingStudy.series.modalityextensibleAcquisitionModality .
http://dicom.nema.org/medical/dicom/current/output/chtml/part16/sect_CID_29.html
ImagingStudy.series.bodySiteexampleSNOMEDCTBodyStructures
http://hl7.org/fhir/ValueSet/body-site
from the FHIR Standard
ImagingStudy.series.lateralityexampleLaterality
http://hl7.org/fhir/ValueSet/bodysite-laterality
from the FHIR Standard
ImagingStudy.series.performer.functionextensibleImagingStudySeriesPerformerFunction
http://hl7.org/fhir/ValueSet/series-performer-function
from the FHIR Standard
ImagingStudy.series.instance.sopClassextensiblehttp://dicom.nema.org/medical/dicom/current/output/chtml/part04/sect_B.5.html#table_B.5-1
http://dicom.nema.org/medical/dicom/current/output/chtml/part04/sect_B.5.html#table_B.5-1

This structure is derived from ImagingStudy

Summary

Mandatory: 3 elements
Must-Support: 2 elements

Structures

This structure refers to these other structures:

Slices

This structure defines the following Slices:

  • The element 1 is sliced based on the value of ImagingStudy.identifier



Other representations of profile: CSV, Excel, Schematron
