Proxy role data model

Logical national data model

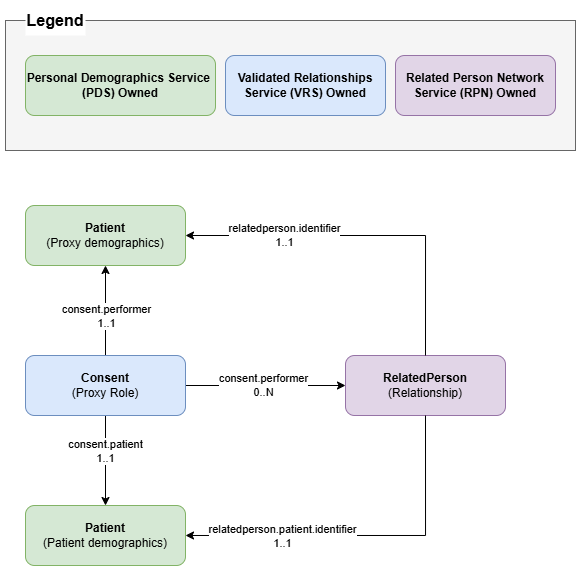

The target logical data model for a proxy role - as far as national services is concerned - is illustrated below.

Logical local data model

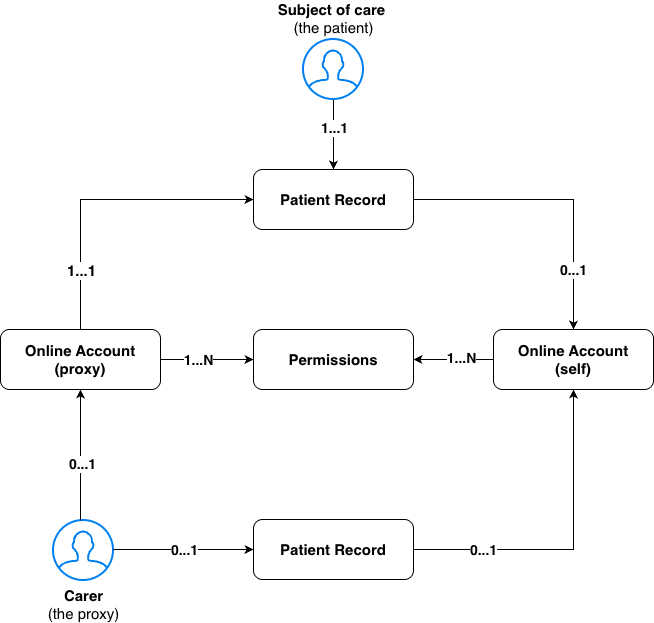

The below logical data model describes the relationship between patient records, online accounts and permissions. This captures the expected conceptual entity relations that will be needed in a clinical system to support the set-up of proxy access.
